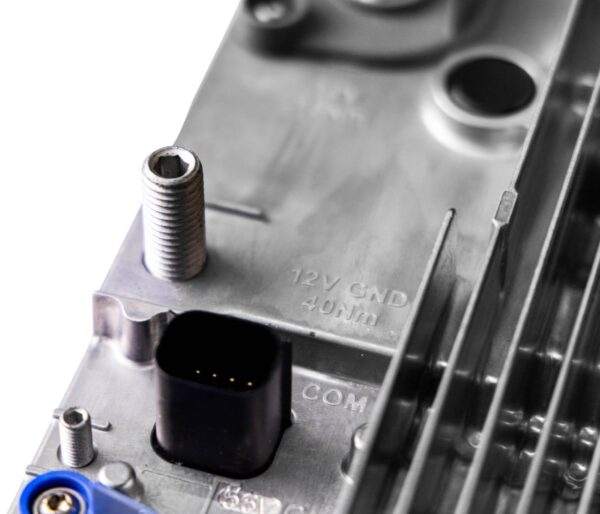

The Wakespeed 48v/12v Bi-Directional DC-DC Converter simplifies and streamlines installation with its efficient Bi-Directional Buck-Boost DC-DC Converter. From installation using the existing chassis alternator to supplementing or even replacing the chassis alternator with a high-energy unit, the WS48-12x seamlessly manages power distribution, putting it exactly where you need it.
- WS500 Advanced Alternator Regulator is required.
- Seamless transfer of up to 3,000 watts of power from one voltage bus to the other.
- Support for 12v/48v power buses.
- Works with existing chassis alternators – no changes needed.
- Charge higher voltage batteries utilizing existing chassis electrical system.
- Suppliant system power generation using 2nd higher voltage alternator fully controlled by the WS3000.
- On demand supplemental chassis electrical system power to support surge loads without cost of additional batteries.
- J1939/RV-C based CAN support for system and BMS integration.
- Wide BMS integration support, both CAN and non-CAN based batteries.
- Compatible with additional WS500 controlled alternators installed in same system.
System Voltage
- 12v-48v & 48v-12v: Bidirectional power transfer from two power busses
- 12v Input Range: 8v to 16v (reduced capacity below 12v and above 15v)
- 48v Input Range: 24v to 60v (reduced capacity below 48v and above 60v)
Alternator Support
- Chassis Alternator: 12v
- High Energy Alternator: 48v
- Deployment Options:
- 12v Chassis Alternator
- 48v High Energy Alternator
- Both 12v Chassis & 48v High Energy Alternators
Alternator Management
- Chassis Alternator: No change needed. Alternator monitored for overloading and overheating.
- High Energy Alternator: Full Management
Terminal Management
- Alternator Monitoring: Both Chassis and High Energy Alternators are monitored and managed for overheating.
- DC-DC Converts: DC-DC converter scales back to prevent overheating.
Battery Charge Profiles
- Charge Profile: Preset and configurable profiles to match battery manufactures guidance.
- Charge Phase Criteria: Flexible charging protocol integrating: System voltage, Battery Acceptance Current, Battery Temperature, Alternator Temperature, and/or Time duration.
- Extended Battery Temperature Range Support: Converter can be configured to provide safe charging of batteries outside of normal temperature ranges by dynamically limiting chare current.
Configurations
- Via Wakespeed Configuration Utility App: Full feature Application allows for simple configuration of alternator, battery, BMS and communication options.
Communications
- CAN: J1939 based CAN for system configuration, integration and monitoring.
- Protocols: J1939, RV-C, Marine
- BMS Protocols: RV-C, SMA, Victron, LUX, Others
- USB: Diagnostics/configuration. Firmware upgrade.
Firmware Updates
- Yes: Controller firmware updatable via built-in USB connector.
Compatibility
- System: Fully compatible with Wakespeed WS500 Advanced Alternator Controller
- BMS: Wide range of BMS integration supporting both CAN and non-CAN integration
Connections
- System: Multi-pin harness provides for system, optional alternator, CAN and BMS connection
- Power:
- 12v: M10
- 48v: M8
- Ground: M6
Protections
- 12v: Reverse polarity, over current, short-circuit, under voltage and overvoltage protections
- 48v: Reverse polarity, short-circuit, overcurrent, under voltage and overvoltage protections
Physical & Environmental
- Dimensions: 8.93″ x 9.17″ x 2.44″ / 226.8mm x 233mm x 62mm
- IP Rating: IP69K, IP67
- Operating Ambient Temperature: -40°C to 75°C
