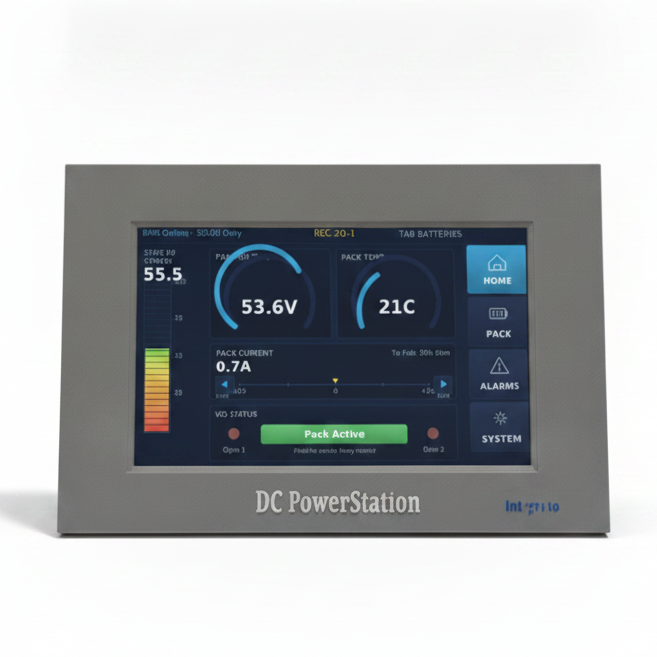

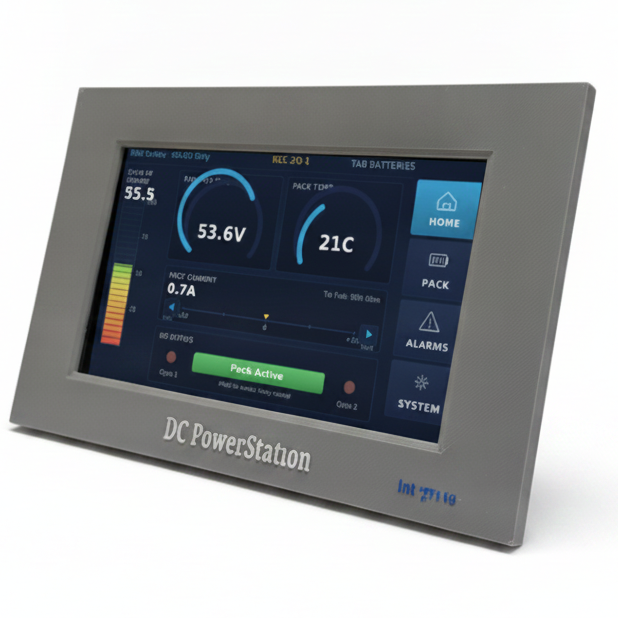

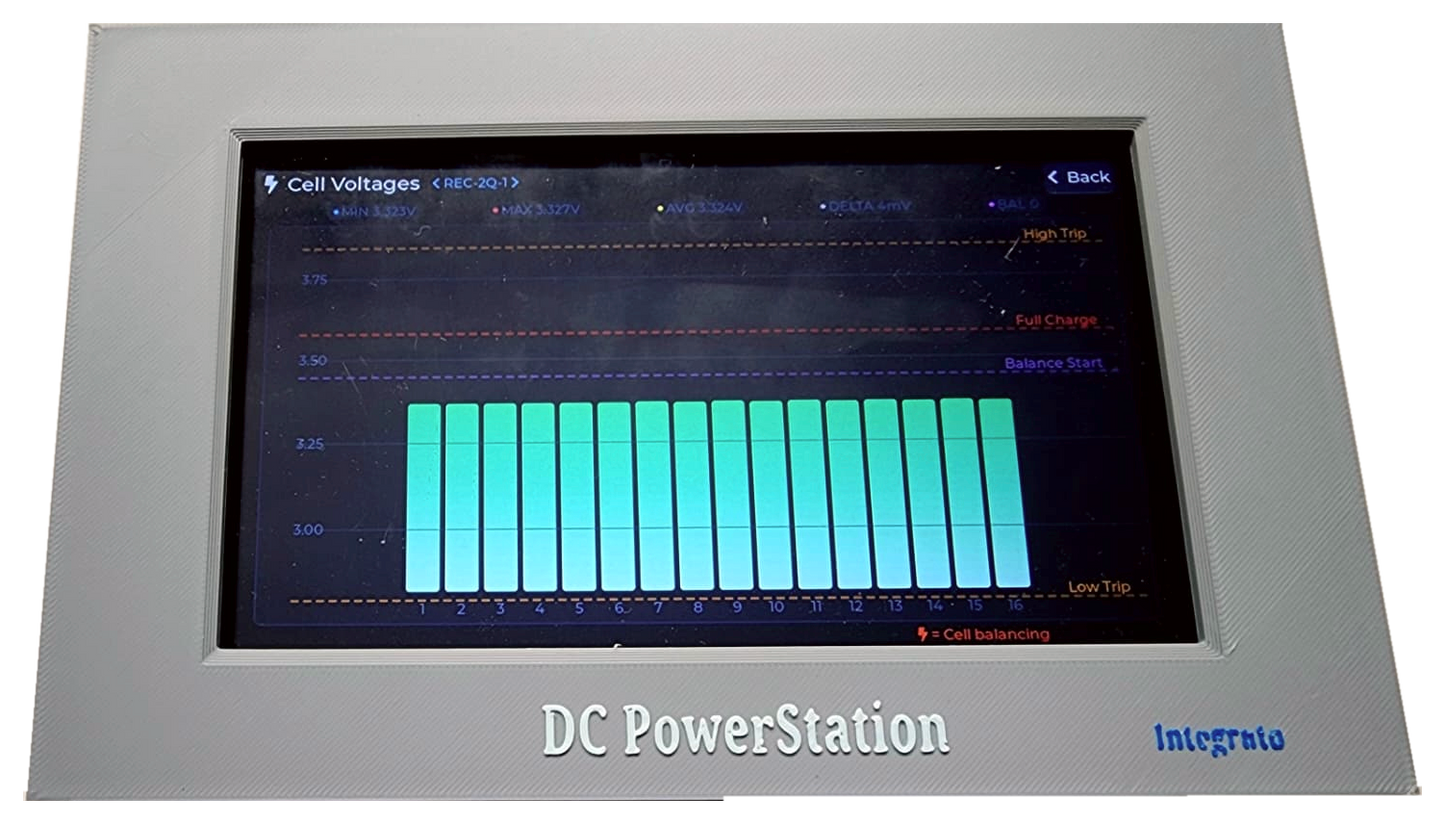

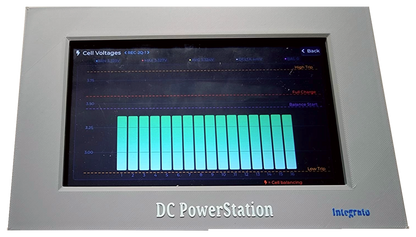

DCP-LCD-P4-7 Inch Webserver PowerStation Integrator Pro c/w panel mount Bezel

DCP-LCD-P4-7 Inch Webserver PowerStation Integrator Pro c/w panel mount Bezel

$479.00 USD
$479.00 USD
Sale Not Available from selected warehouse
Shipping calculated at checkout.

In stock

New for 2026, combination Hi Res LCD touchscreen with built in Next Gen Webserver and IoT Dashboard. Your Multi-vendor gateway to better monitor and troubleshoot your expensive Battery Power System. Includes full REC BMS interface and editor
Loading locations...

REC BMS Product Line Overview

Product Links

Product LCD Overview

View full details

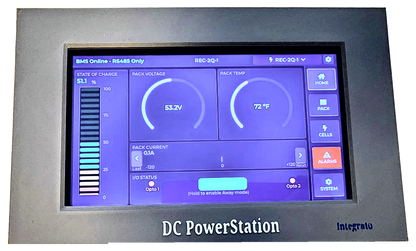

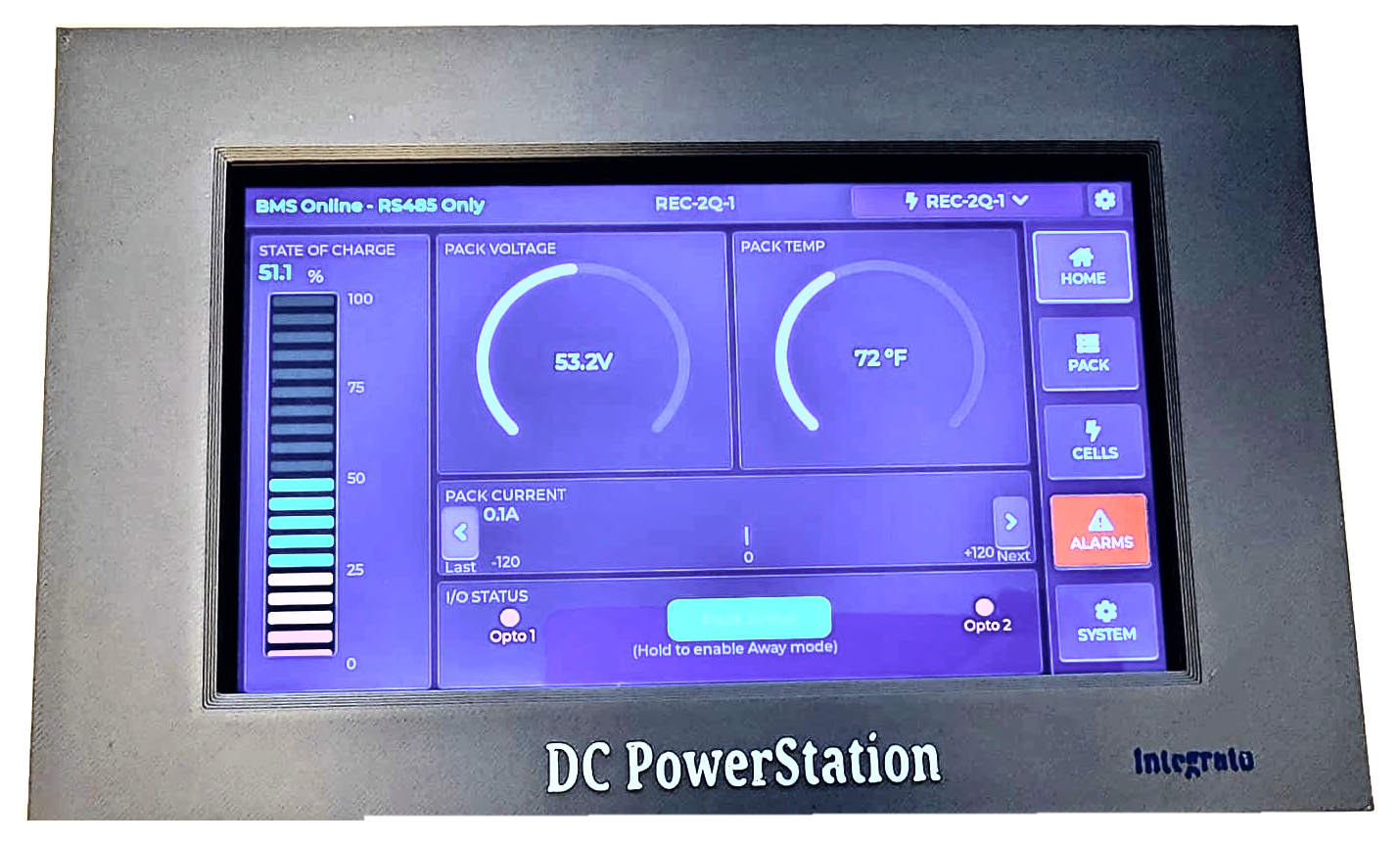

The new LCD PowerStation Webserver and Local LCD display

The DCP-LCD-S3 and P4 models share the same basic features, high res touch screen, web interface and cloud platform — but they're aimed at very different installations. The S3 is a focused, value-priced panel for a single REC BMS. The P4 is the flagship: faster silicon, broader I/O, and a feature roadmap that grows with the DC Powerworld ecosystem.

Both include power supply with plug-in REC BMS connectivity and 11-80VDC input voltage.  LCD display comes with 10' RJ45 extendable cable for remote mounting and can be extended with an RS485 coupler and standard Ethernet patch cable.  Panel mount and wall mount versions are available.

DCP-S3-4B  DCP P4-7B
REC BMS support (RS485) Single device Multiple devices, mixed chemistries, pack aggregation, custom HOME screens
Cloud telemetry & alerts

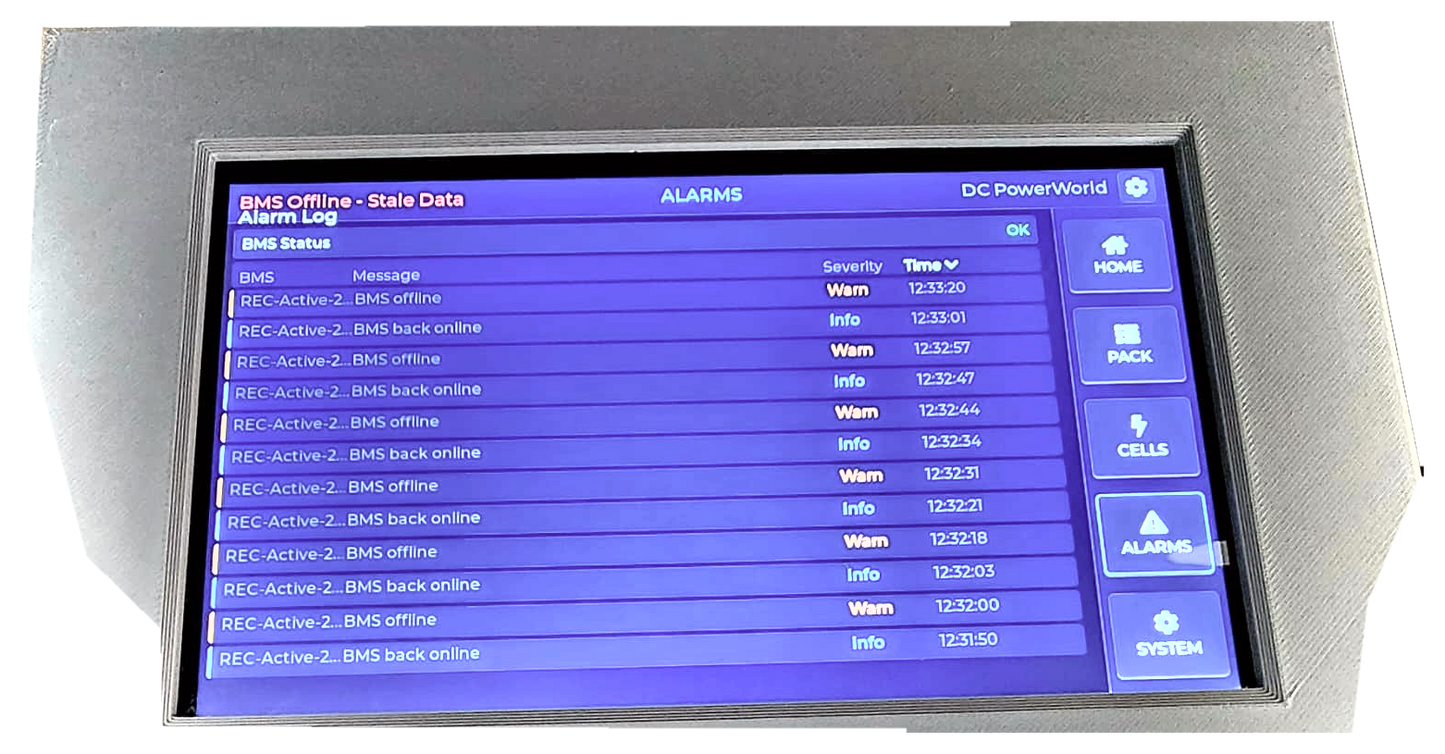

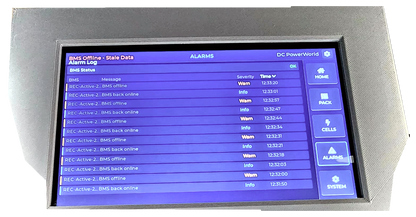

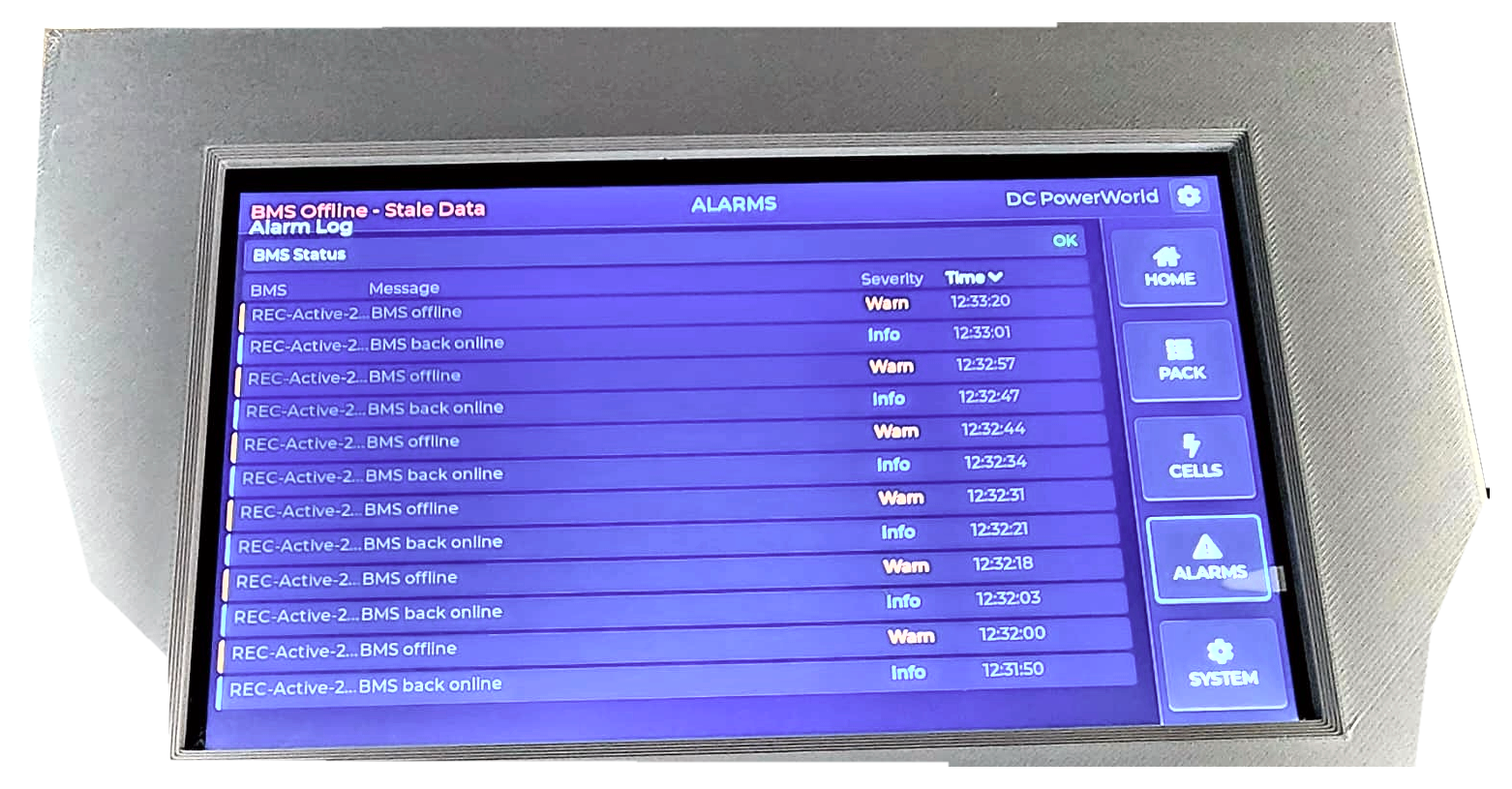

Remote Access (with an internet connection), local alarm buzzer, custom alarm configuration

 Remote Access (with an internet connection), local alarm wav files with speaker, custom alarm configuration
Multi-BMS fleet view — Yes
Victron VE.Direct (MPPT, Phoenix) — Roadmap · 2026
Wakespeed WS500 alternator regulator — Roadmap · 2026
NMEA 2000 (marine instruments) — Roadmap · 2027
RV-C (RV systems, tank monitors) — Roadmap · 2027
Additional RS485 / CAN integrations — Ongoing
OTA firmware updates Security & bug fixes Security, bug fixes, new features

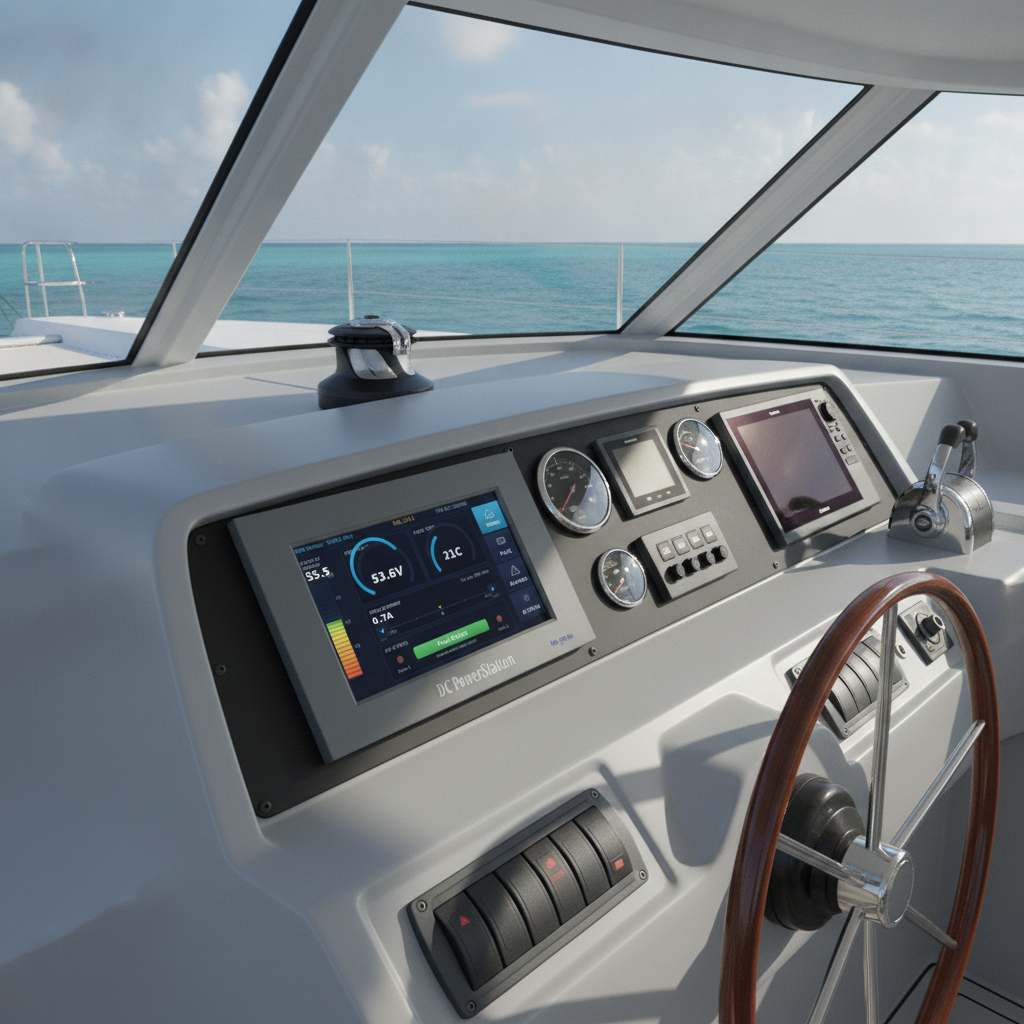

Best for Small residential / single-pack RV / budget builds Marine, multi-pack RV, off-grid, commercial fleet
