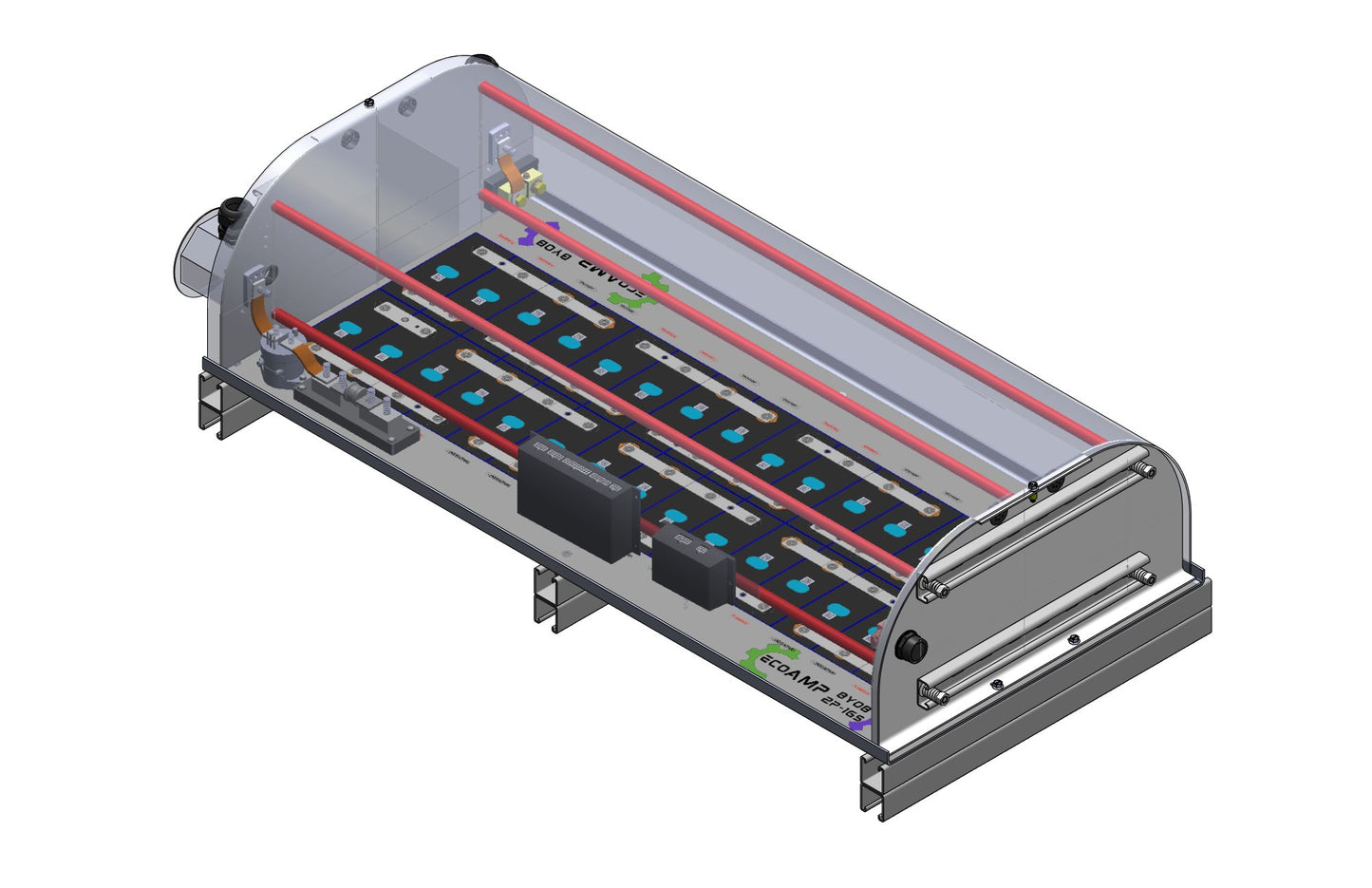

REC BMS 2P16S EcoAMP High capacity Battery Kit

As of Feb 2025 this product is out of stock for the next several months.

Need a reasonably priced high capacity battery pack with a Smart BMS?

Check out the new EcoAMP battery pack kit with 27-32kWh capacity and 250 Amp Continuous Charge/Discharge Rating.  Need more capacity?  Combine up to 16 packs to provide up to more than 500 kWh of 48V DC power.  That's enough energy to continuously power an average home for about 2-3 weeks.

This pre-assembled kit is designed to work with inexpensive off the shelf prismatic cells and with the price of these as of early 2025 you can now have a professionally enclosed pack of 32kWh of "Smart" 48V power for about $ 7K USD, instead of trying to repurpose server packs with less capacity and lower current ratings.

Specifications:
27 - 32 kWh Energy Storage (depending on cells used)
utilizes 32 cells of 280, 302, 304 or 314 ah 3.2V lifepo4 Cells
(*Must use HSEV or Grade A cells with matching resistance from reputable source for proper cell balancing capabilities)
Includes a fully preconfigured and wired REC 2Q BMS with CAN communication configurable to connect to numerous inverters/chargers including:  Solark, SMA, Victron, Growatt, EG4, Solis, Megarevo
(Additional Inverters and chargers not listed here see REC website for additional options)
Tyco 500 AMP EV Contact Switch
500 AMP Current Shunt MILS161B Military Specifications
Deltec Co Fuse Block and T-class fuse
Eaton 1000v Rated ⅜ diameter Brass Terminal Posts and Polarity Specific Junction Boxes
PIDG Terminal Splices and TE Mate-N-Lok II Connectors
Dimensions: 52”x22.5”x14.5”
Weight: 375 lbs (including cells)
