Please fix manual for Active BMS
-

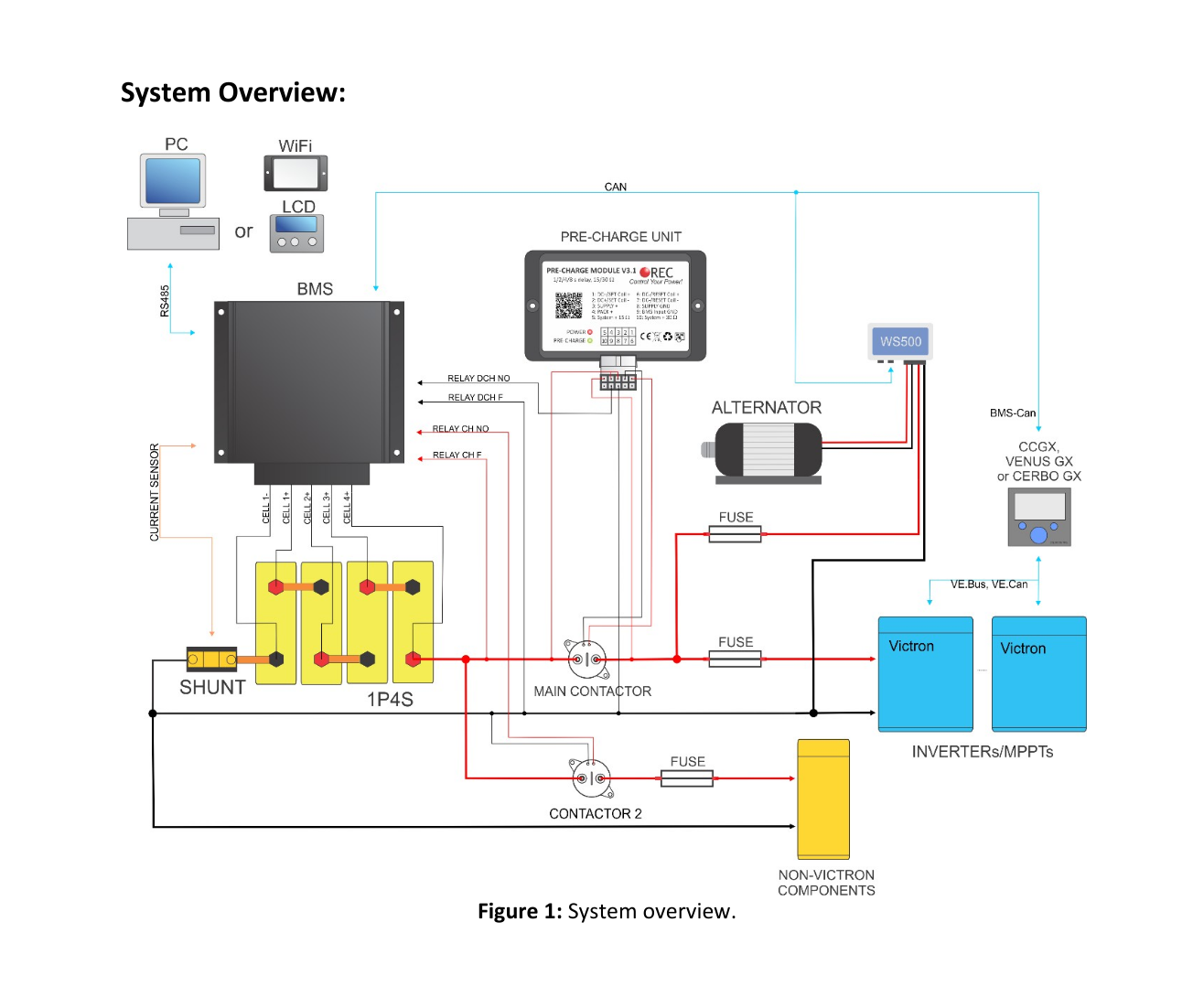

Sorry, I just wanted to make you guys aware but the 2.9.4 manual has a big error. DCH F goes to the negative line below (which is correct).
I spent my whole Sunday trying to understand where the ghost was. It should go to a positive line on a v2 of the pre-charge module.
Looking closer it seems v2 of the pre-charge module uses positive feed for the contactor, whereas the new version 3 uses negative feed (per the latest manual rev)
It would be awesome if the manual had both. Or at least a big NOTE mentioning v2. Also looking at the manual for the v2 it isn't clear. The diagrams are not labeled. So there's allot of guess work.
I don't know, but I believe many folks are like me. When ever they need to look up a manual, the latest on the web is what I tend to go for.
Thanks
Martin
