Serial port pads on PCB?

• PCB, pad assignments, Serial Port

• E

  Ezra

  1/2/26, 2:24 PM

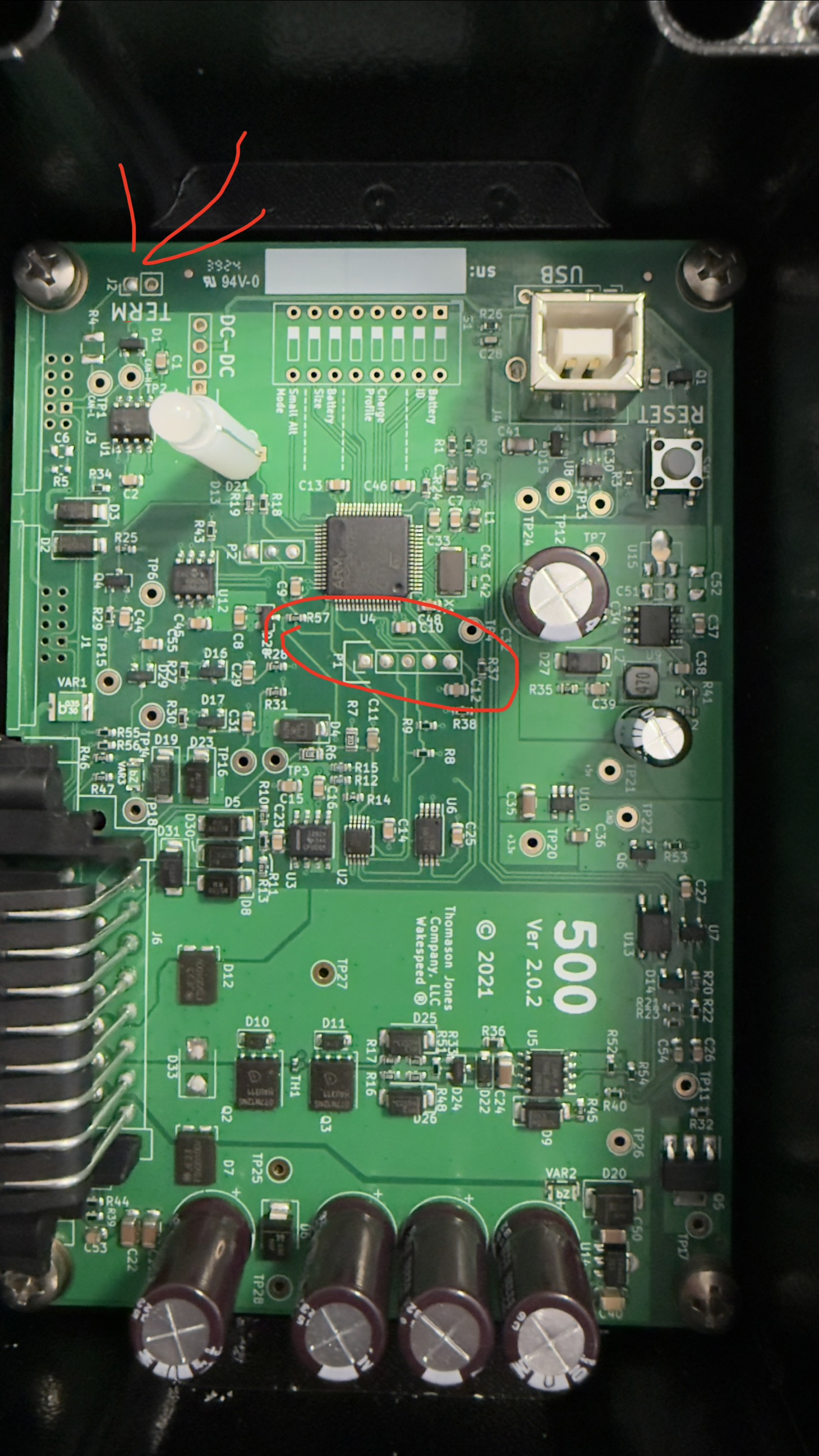

  By chance, are RX and TX available on the board? Possibly J2, the two pads labeled TERM? Or P1?

  Before I get me scope out, I was hoping that someone knew.

  Thanks! Ezra

  0 likes 0 likes Liked Like

  ---

  2
  Posts

  19
  Views

  Reply

  ---

• R

  Rick OGM Support Staff

  1/2/26, 7:44 PM

  I am not sure about the top two, but as I recall, the bottom are your TTL Bootload pins.  By way of this reply I am including Al from Dragonfly.  I am sure he can help.

  @Al
